Pure Series

The overview below shows our available LCD Pure Panels and their key data. Each of these displays can be chosen with no touch panel, with resistive or capacitive variants available. We also offer custom cover glass. If you are interested in this option, please feel free to contact us directly.

Size [Inch]	Order-No.	Resol [Pixel]	Brightn. [cd/m²]	TP ¹)	Dimensions [mm] ²)	Active Area [mm]	IPS	Interface	PS ³)

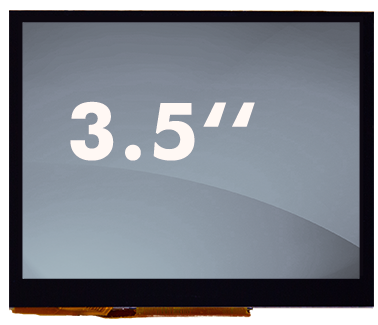

3.5	DCD-MX35	320x240	550	-	76.90 x 63.80 x 3.26	70.08 x 52.56	Yes	RGB	P
3.5	DCD-MX35T	320x240	550	R	76.90 x 63.80 x 4.26	70.08 x 52.56	Yes	RGB	P
3.5	DCD-MX35C	320x240	550	C	76.90 x 63.80 x 4.55	70.08 x 52.56	Yes	RGB	P
4.3	DCD-MX43	800x480	1000	-	105.50 x 67.10 x 3.15	95.04 x 53.86	Yes	RGB	P
4.3	DCD-MX43T	800x480	1000	R	105.50 x 67.10 x 4.0	95.04 x 53.86	Yes	RGB	P
4.3	DCD-MX43C	800x480	1000	C	105.50 x 67.10 x 4.55	95.04 x 53.86	Yes	RGB	P
5.0	DCD-MX50	800x480	1000	-	117.00 x 75.60 x 2.65	108.00 x 64.80	Yes	RGB	P
5.0	DCD-MX50T	800x480	1000	R	117.00 x 75.60 x 4.1	108.00 x 64.80	Yes	RGB	P
5.0	DCD-MX50C	800x480	1000	C	117.00 x 75.60 x 4.2	108.00 x 64.80	Yes	RGB	P

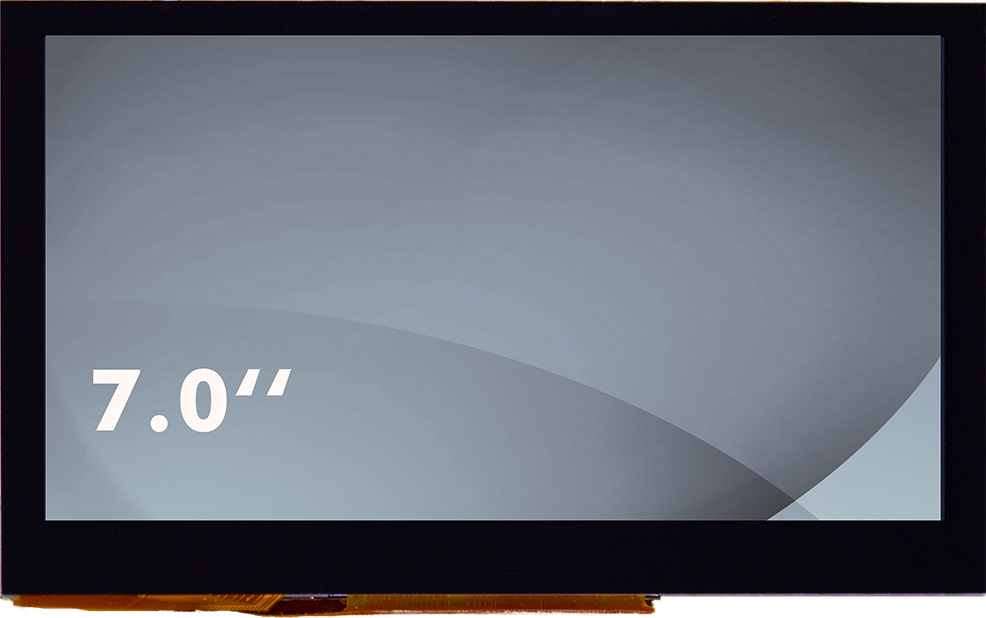

7.0	DCD-MX70	1024x600	1000	-	165.00 x 99.96 x 3.5	154.21 x 85.92	Yes	LVDS	P
7.0	DCD-MX70T	1024x600	1000	R	165.00 x 99.96 x 4.9	154.21 x 85.92	Yes	LVDS	P
7.0	DCD-MX70C	1024x600	1000	C	165.00 x 99.96 x 5.1	154.21 x 85.92	Yes	LVDS	P

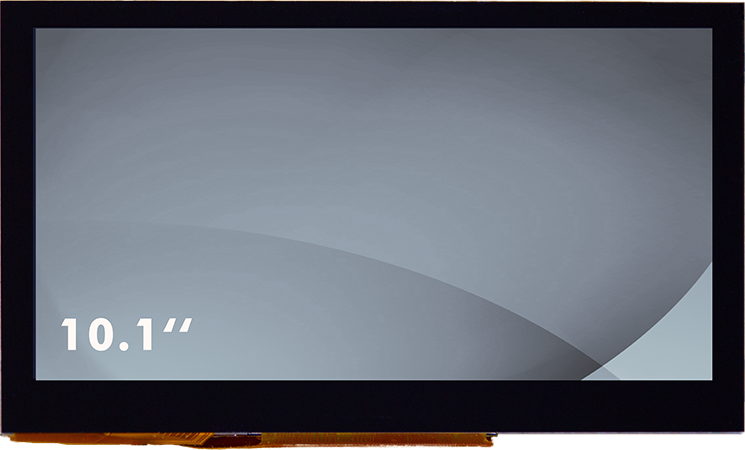

10.1	DCD-MX101	1280x800	1000	-	228.30 x 150.05 x 6.3	216.96 x 135.60	Yes	LVDS	P
10.1	DCD-MX101T	1280x800	1000	R	228.30 x 150.05 x 8.5	216.96 x 135.60	Yes	LVDS	P
10.1	DCD-MX101C	1280x800	1000	C	228.30 x 150.05 x 9.3	216.96 x 135.60	Yes	LVDS	P

¹) Touch Panel Options: T = Resistive / C = Projected Capacitive Touch (PCAP) / — = No Touch Panel
²) Width x Height x Depth
³) Production Status (PS): P = In Production / N = Not for new Designs / E = End of Life / S = Samples available / C = currently unavailable
