LCD Pure-X
The overview below shows our available LCD Pure X Panels and their key data. Each of these displays can be chosen with no touch panel, with resistive or capacitive variants available. We also offer custom cover glass. If you are interested in this option, please feel free to contact us directly.
| Size [Inch] |
Order-No. | Resol [Pixel] |
Brightn. [cd/m2] |
TP 1) |
Dimensions [mm] 2) |
Active Area [mm] |
IPS |
Interface3) |
PS4) |
| 4.3 | DPP-XH43 | 800x480 | 1000 | - | 105.50 x 67.10 x 3.15 | 95.04 x 53.86 | Yes | LVDS | T |
| 4.3 | DPP-XHT43 | 800x480 | 1000 | R | 105.50 x 67.10 x 4.0 | 95.04 x 53.86 | Yes | LVDS | T |
| 4.3 | DPP-XHC43 | 800x480 | 1000 | C | 105.50 x 67.10 x 4.55 | 95.04 x 53.86 | Yes | LVDS | T |

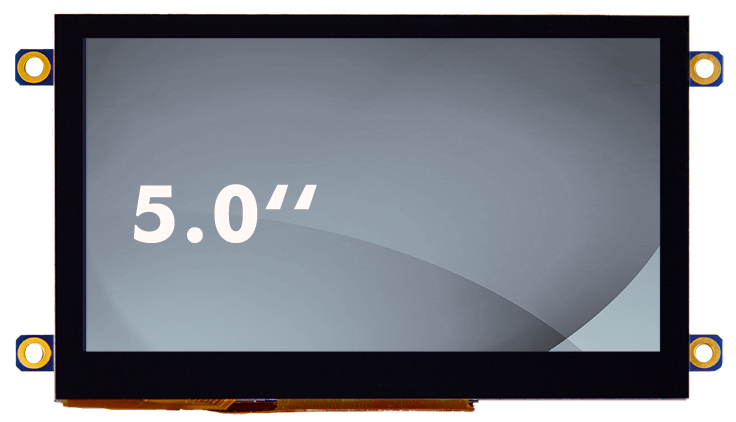

| 5.0 | DPP-XH50 | 800x480 | 1000 | - | 117.00 x 75.60 x 2.65 | 108.00 x 64.80 | Yes | LVDS | P |
| 5.0 | DPP-XHT50 | 800x480 | 1000 | R | 117.00 x 75.60 x 4.1 | 108.00 x 64.80 | Yes | LVDS | T |
| 5.0 | DPP-XHC50 | 800x480 | 1000 | C | 117.00 x 75.60 x 4.2 | 108.00 x 64.80 | Yes | LVDS | P |
| 7.0 | DPP-XH70 | 1024x600 | 1000 | - | 165.00 x 99.96 x 3.5 | 154.21 x 85.92 | Yes | LVDS | P |
| 7.0 | DPP-XHT70 | 1024x600 | 1000 | R | 165.00 x 99.96 x 4.9 | 154.21 x 85.92 | Yes | LVDS | T |
| 7.0 | DPP-XHC70 | 1024x600 | 1000 | C | 165.00 x 99.96 x 5.1 | 154.21 x 85.92 | Yes | LVDS | P |

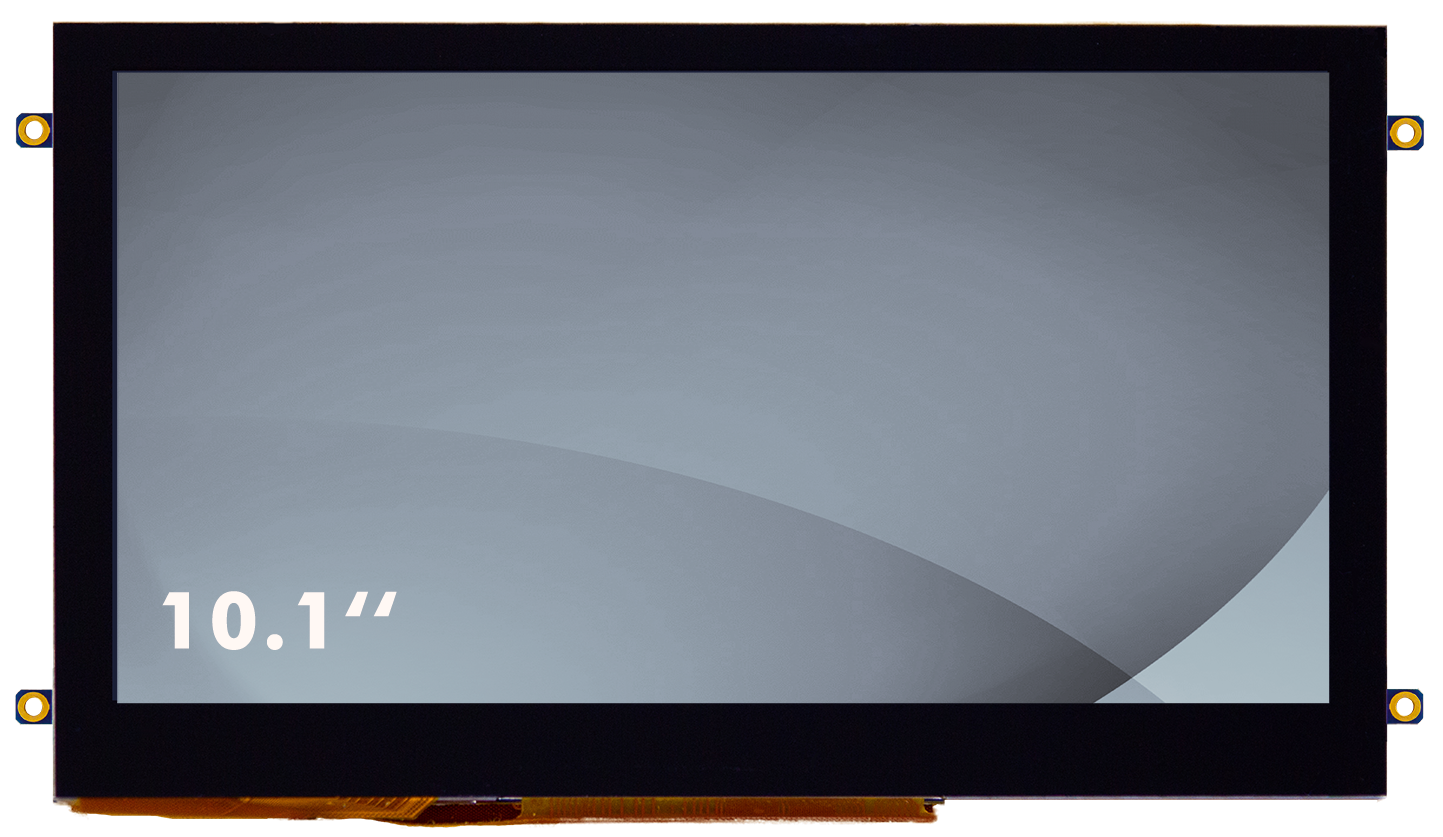

| 10.1 | DPP-XH101 | 1280x800 | 900 | - | 228.30 x 150.05 x 6.3 | 216.96 x 135.60 | Yes | LVDS | P |
| 10.1 | DPP-XHT101 | 1280x800 | 900 | R | 228.30 x 150.05 x 8.5 | 216.96 x 135.60 | Yes | LVDS | T |
| 10.1 | DPP-XHC101 | 1280x800 | 900 | C | 228.30 x 150.05 x 9.3 | 216.96 x 135.60 | Yes | LVDS | P |
1) Touch Panel Options: T = Resistive Touch / C = Projected Capacitive Touch (PCAP) / — = No Touch Panel
2) Width x Height x Depth
3) The 4.3" and 5.0" LCD Pure X series have a RGB to LVDS converter on board
4) Production Status (PS): P = In Production / N = Not for new Designs / E = End of Life / S = Samples available / C = currently unavailable / T = to be launched soon
