DPP-FHx43#
The documentation of our iLCD JPro series can be downloaded as a PDF file here:
iLCD JPro Documentation as PDF
To jump to downloads click here:
LCD#
Item |
DPP-FH43 |
DPP-FHT43 |
DPP-FHC43 |
|---|---|---|---|
Screen Size |
4.3 inch |
||
Display Resolution |
800 x RGB x 480 dots |
||
Active Area |
95.04 (H) x 53.858 (V) mm |
||
Display Mode |
Normally black / Transmissive |
||
Pixel Arrangement |
RGB-Strip |
||
Display Color |
16.7 M (Display) / 64k (Controller) |
||
Backlight 1) |
White LED, typical lifetime 20.000 hours |
||
Brightness typ. |
1000 cd/m2 |
||
Contrast ratio typ. |
1200 |
||
Viewing Direction |
ALL O’clock / IPS-Display |
||
Touch Screen |
No |
4-wire resistive |
PCAP 5 Fingers |
Note:
1) Brightness decreased to 50% of the initial value. Life time; mean time before failure at normal temperature (25°C) and normal humidity (60%)
Features#
Item |
DPP-FHC43 |
|---|---|
Connectivity |
USB 2.0 / 1 x RS232 3.3V / I2C / SPI / Ethernet with optional board |
Keyboard |
matrix scanning for up to 128 keys |
Outputs |
up to 16 outputs/LEDs (on/off/blink with user selectable blink frequency) 1) |
Inputs |
up to 16 1 |
ADC |
up to 4 (12 bit with range of 0 .. 3.3V) 1 |
Relays/PWM |
up to 2 1 |
Real-Time Clock |
Yes |
Flash Memory |
30 MByte for fonts, graphics, macros and text templates |
RAM |
32 MByte RAM for frame buffer and for screen saving |
iLCD controller |
DPM5050 operating at 528 MHz |
Note:
1) Fully customizable assignments of inputs, outputs, ADCs, Relays, PWMs and keyboard columns
Electrical Characteristics#
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|---|---|---|---|---|---|
Supply Voltage |
VCC |
3.2 |
5.0 |
5.25 |
V |
Input Voltage H Level 1) |
VIH |
2.4 |
- |
3.3 |
V |
Input Voltage L Level 1) |
VIL |
0.0 |
- |
0.8 |
V |
Output current for digital outputs |
IOUT |
3.5 |
mA |
||
Vbatt current |
IVbatt |
1 |
µA |
||
Current consumption display on, backlight off @ VCC = 5V 2)3) |
ICC |
180 |
mA |
||
Current consumption with display+backlight @ VCC = 5V 2)3)4) |
ICC |
420 |
mA |
Notes:
1) For digital inputs only
2) No I/O ports active
3) All pixel set to white color
4) Backlight intensity 100%

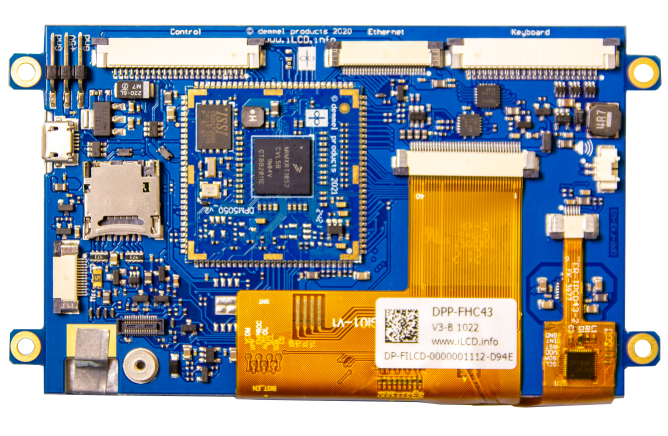

Circuit Board#
DPP-FHC43_connectors
See Pin Descriptions for more information.
Mechanical Specification#
3D Model#
Downloads#
